| Brand Name: | RENOXBELL |
| Model Number: | ACP-118 |
| MOQ: | 1000㎡ |
| Price: | USD10-USD60/㎡ |
| Packaging Details: | wooden pallets or boxes |
| Payment Terms: | T/T or L/C |

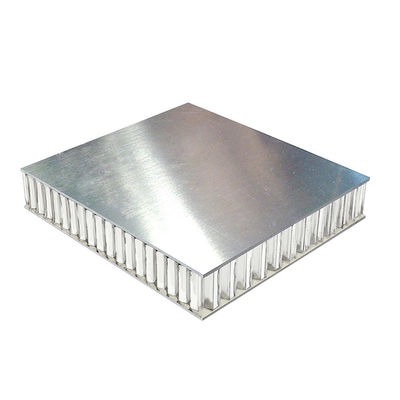

Aluminum Honeycomb Composite Panel is made from good quality PVDF or PE coated or anodized aluminum sheets with and honeycomb foil by bonding and laminating with high polymer adhesive, it is a kind of special sandwich composite material and panel with features of low weight and cost, high tensile and impact strength, good flatness, smooth surface finish and durable colors, customizable thickness and sizes and designs according to project requirements and drawings.

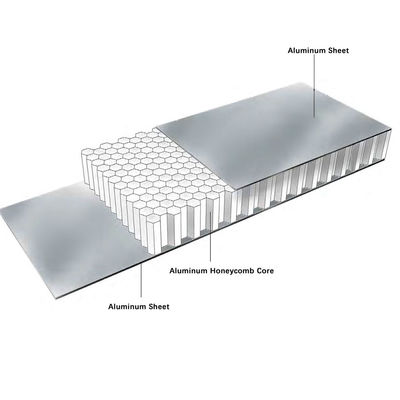

The panels are made from aluminum sheets and foil honeycomb core, which makes them durable and easy for installation. They are very popular for shop exterior wall decoration due to their good flatness and sleek finish.
We offer different packing options, including carton, wooden case, and pallet, depending on your preference. Our Aluminum Composite Panels are perfect for those who want an attractive and long-lasting exterior wall solution.

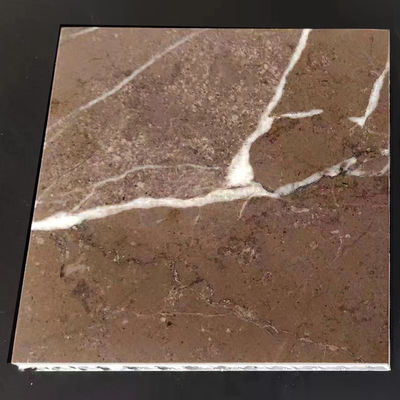

Stone honeycomb panel is a high-tech product made by bonding thin natural stone sheet to the aluminum honeycomb panel with adhesive. The decorative stone sheet can be almost any type of stone, such as granite, marble, sandstone, limestone and so on.
At present, stone honeycomb panels can be basically divided into stone aluminum honeycomb panels, stone steel honeycomb panels, stone fiberglass honeycomb panels etc. The thickness of the decorative stone for stone honeycomb panels is generally 3mm to 5mm for matte and mirror panels, and 5mm to 8mm for coarse panels. The thickness of honeycomb panels can be determined according to different applications and design requirements. When used as exterior wall panels, the thickness is usually above 15mm. Due to the thinning of the thickness of the decorative stone, coupled with the advantages of lightweight, high strength, and good rigidity of the honeycomb panel structure, the stone honeycomb panel not only has the surface effect of stone, but also has properties that ordinary stone doesn’t have.
Compared with traditional stone, stone honeycomb panels have the following advantages:
1) Lightweight: The average weight of stone honeycomb panels is about 16kg/m2, which is almost 80% lighter than solid stone of the same thickness. The reduction of this weight can greatly reduce the weight load of buildings, lower labor intensity, and save construction costs.
2) High strength: High mechanical performance indicators such as plane tensile strength, interlayer shear strength, and bending stiffness. In terms of deformation and impact resistance, the impact strength of 20mm stone honeycomb board is about 10 times higher than that of 30mm thick stone.
3) Good safety: After being subjected to strong impact or overload bending deformation, the surface of the stone will only rupture locally, without producing radiating cracks, and will not rupture or fall off as a whole.
4) Easy processing: Ordinary processing tools can be used on site to cut and install molded products that need to be trimmed, and various types of shapes can be made with smooth and beautiful lines.
5) Economic and aesthetic: According to the needs of the building, any domestic or foreign stone fabric can be selected, especially those with low strength and lack of variety, for composite. This can not only maintain the main performance indicators of natural stone, improve its durability, but also greatly improve the utilization rate of stone and save natural resources.
6) Energy saving and environmental protection: The thermal conductivity of ordinary solid stone is 3.5W/(m • K) to 1.3W/(m • K), while the thermal conductivity of stone aluminum honeycomb panels is 0.104W/(m • K) to 0.130W/(m • K), which is within the range of thermal insulation materials. From this, it can be seen that stone aluminum honeycomb panel is a thermal insulation and energy-saving material, while also having the function of sound insulation and noise reduction.
Stone honeycomb panels have overcome the disadvantages of heavy weight, low strength, and high brittleness of traditional stone materials. After years of development and application, they have become an important green and new composite building decoration material. At present, stone honeycomb panels are not only used for interior and exterior building decoration, but also applied in fields such as furniture, elevators, vehicles, and ships.
Aluminum Honeycomb Panel is made from good quality PVDF or PE coated or anodized aluminum sheets with and honeycomb foil by bonding and laminating with high polymer adhesive, it is a kind of special sandwich composite material and panel with features of low weight and cost, high tensile and impact strength, good flatness, smooth surface finish and durable colors, customizable thickness and sizes and designs according to project requirements and drawings.
| Name | Aluminum honeycomb panel | Composition | Aluminum sheets, honeycomb foil, adhesive |
| Techniques | Bonding and laminating | Structure | Sandwiched lamination |
| Panel thickness | 5mm to 200mm or customized thickness | Aluminum skins | 0.5mm to 1.0mm other customized thickness |
| Cell size | 4mm, 6mm, 8mm, 10mm etc. | Aluminum alloy | A1100, A3003 or A5052 |
| Surface treatment | PVDF coating, PE coating, anodizing | Color | Solid colors, metallic colors, natural color, imitated wood, stone, marble and granite colors |
| Surface finish | Smooth, hairlines brushed finish, embossed finish. | Coating thickness | 25mm to 45mm |
| Size | 1220x2440mm or customized sizes as per drawings | Design | Flat, curved, hyperbolic or other irregular shapes |
| Density | 2.75kg/m² to 7.5kg//m² | Optional face materials | Aluminum alloy, HPL, limestone, natural stone, granite, marble or fiberglass sheets |
| Features | Light weight, low cost, high strength, good flatness, uniform color, even coating finish, variety of available colors, good heat and sound insulation, customizable sizes and thickness | Applications | Building façades, eaves, awnings, canopies, ceilings, roofs, partitions, interior and exterior walls, ship, vehicles, cabinets, tables, furniture etc. |
RENOXBELL honeycomb panel is widely used for building renovation and decoration due to its excellent corrosion resistance and impact resistance. It is also suitable for interior decoration, signage, furniture, and other scenarios. With a weight of 2.75-7.5kg/m2 and an elongation of ≥8%, the ACP can be easily cut and bent to meet the specific needs of different applications.
Our aluminum composite panel can be easily cut and bent, making it an easy installation process. The minimum order quantity is 1000㎡, and the price ranges from USD10-USD60/㎡. It comes with wooden pallets or boxes for packaging, and the delivery time is 20-35 days. Payment terms are T/T or L/C, and our supply ability is 300,000㎡ monthly.
Our team of technical support specialists is available to assist you with any questions or issues you may have with our Aluminum Composite Panels product. We offer a range of services to ensure that our panels are properly installed and maintained, including:
Our goal is to provide you with the highest level of customer service and technical expertise, so you can have confidence in the performance and reliability of our Aluminum Composite Panels product.
Video
Video
Video
Video
Video
Video
Video
Video
|
