| Brand Name: | RENOXBELL |
| Model Number: | ACP-120 |
| MOQ: | 1000㎡ |
| Price: | USD10-USD60/㎡ |
| Packaging Details: | wooden pallets or boxes |
| Payment Terms: | T/T or L/C |

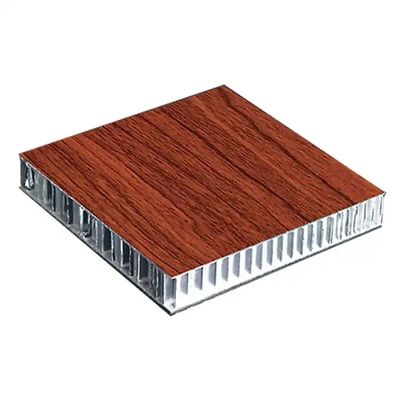

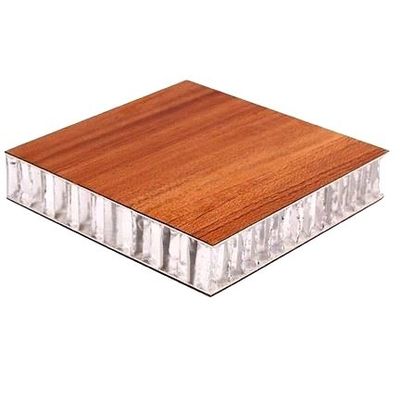

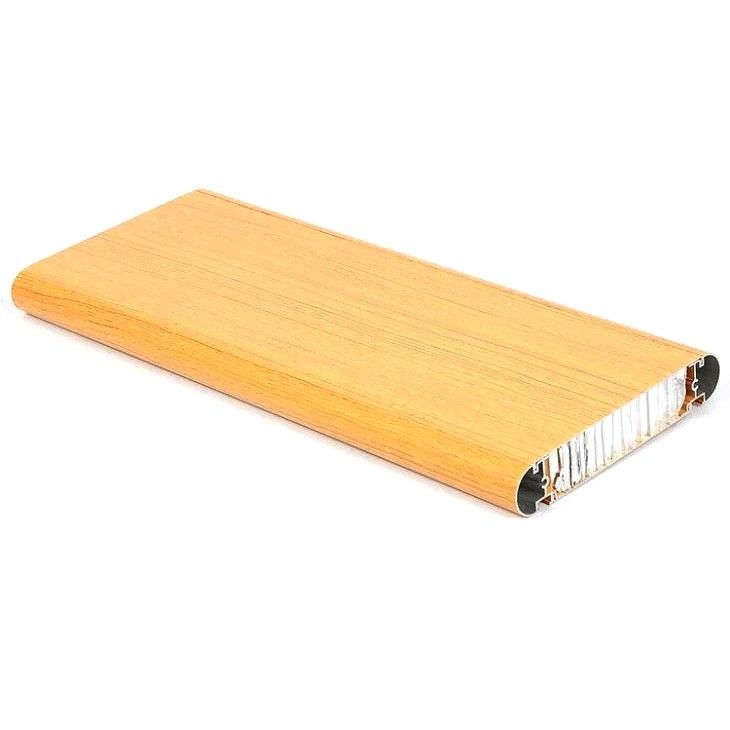

Aluminum Honeycomb Panel is made from good quality PVDF or PE coated or anodized aluminum sheets with and honeycomb foil by bonding and laminating with high polymer adhesive, it is a kind of special sandwich composite material and panel with features of low weight and cost, high tensile and impact strength, good flatness, smooth surface finish and durable colors, customizable thickness and sizes and designs according to project requirements and drawings.
One of the key features of these panels is their fireproofing capabilities. The panels come in Class A2 fireproofing grade, which means they are suitable for use in buildings where fire safety is a concern. The panels are available in two fireproof grades, B1 and A2, giving customers the flexibility to choose the level of fire protection they need.
Another benefit of the Aluminum Composite Panels is their ability to be easily cut and bent to fit any design requirements. This flexibility makes them ideal for use in a wide range of applications, from cladding and facades to interior decoration and furniture.
The panels are available in a maximum length of 12,000mm, making them suitable for use in large-scale projects. Despite their size, the panels are lightweight, with a weight of just 2.75-7.5kg/m². This makes them easy to handle and install, reducing the overall time and cost of the project.
In addition to their fireproofing and design flexibility, the Aluminum Composite Panels are also eco-friendly. The panels are made from recyclable materials, making them a sustainable choice for customers who are looking to reduce their environmental impact.
In summary, the Aluminum Composite Panels are a durable, flexible, and sustainable solution for building renovation and decoration. With their Class B fireproofing, ability to be easily cut and bent, and wide range of applications, they are a popular choice for architects, designers, and builders.
| Name | Aluminum honeycomb panel | Composition | Aluminum sheets, honeycomb foil, adhesive |
| Techniques | Bonding and laminating | Structure | Sandwiched lamination |
| Panel thickness | 5mm to 200mm or customized thickness | Aluminum skins | 0.5mm to 1.0mm other customized thickness |
| Cell size | 4mm, 6mm, 8mm, 10mm etc. | Aluminum alloy | A1100, A3003 or A5052 |
| Surface treatment | PVDF coating, PE coating, anodizing | Color | Solid colors, metallic colors, natural color, imitated wood, stone, marble and granite colors |
| Surface finish | Smooth, hairlines brushed finish, embossed finish. | Coating thickness | 25mm to 45mm |
| Size | 1220x2440mm or customized sizes as per drawings | Design | Flat, curved, hyperbolic or other irregular shapes |
| Density | 2.75kg/m² to 7.5kg//m² | Optional face materials | Aluminum alloy, HPL, limestone, natural stone, granite, marble or fiberglass sheets |
| Features | Light weight, low cost, high strength, good flatness, uniform color, even coating finish, variety of available colors, good heat and sound insulation, customizable sizes and thickness | Applications | Building façades, eaves, awnings, canopies, ceilings, roofs, partitions, interior and exterior walls, ship, vehicles, cabinets, tables, furniture etc. |
The product is very versatile and can be used for a variety of applications. It is commonly used for building facades, interior decoration, signage, furniture, and other decorative purposes. Its sleek and modern design makes it a popular choice for architects, designers, and builders.
The panels come in different sizes, with a maximum length of 12,000mm. They can be easily cut to fit any size or shape, making them ideal for custom projects. The panels are Class B fireproof, which means they have a high level of fire resistance.
Renoxbell ACP-111 is packaged in wooden pallets or boxes, making it easy to transport and store. The delivery time is 20-35 days, and the payment terms are T/T or L/C. The product is available for purchase in shops or marketplaces, with a price range of USD10-USD60/㎡. The supply ability of the product is 300,000㎡ monthly.
Overall, Renoxbell ACP-111 is a versatile and high-quality product that can be used for various applications. Its lightweight, eco-friendly, and fire-resistant properties make it an excellent choice for builders and designers. The product is easy to install, cut, and transport, and can be distributed and sold in different markets.
RENOXBELL offers product customization services for their Aluminum honeycomb Composite Panels. These panels are manufactured in China and come with ISO9001 certification, ensuring high quality standards. The minimum order quantity for these panels is 1000㎡, with a price range of USD10-USD60/㎡.
The panels come in wooden pallets or boxes for packaging, and have a delivery time of 20-35 days. Payment can be made through T/T or L/C. RENOXBELL has a monthly supply ability of 300,000㎡, and the panels weigh between 4.5-7.5kg/m2. They have a high impact resistance and are eco-friendly, making them a great choice for various projects.
The panels also have excellent sound insulation and can be distributed and sold at shops or marketplaces. They can also be fixed by self-tapping bolts or finished by adhesive in a sandwich way. The packaging options include cartons, wooden cases, and pallets.
Our technical support and services for our Aluminum Composite Panels product include:
Video
Video
Video
Video
Video
Video
Video
Video
|
