| Brand Name: | RENOXBELL |
| Model Number: | ACP-123 |
| MOQ: | 1000㎡ |
| Price: | USD10-USD60/㎡ |
| Packaging Details: | wooden pallets or boxes |
| Payment Terms: | T/T or L/C |

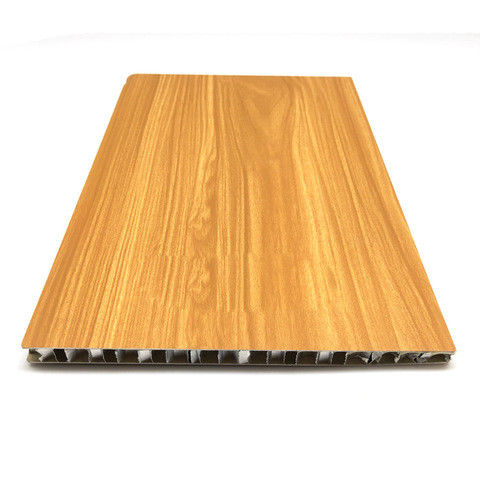

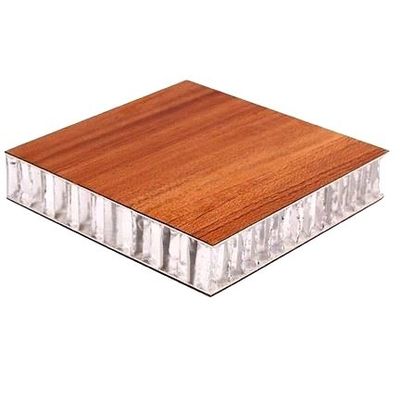

Aluminum Honeycomb Panel is made from good quality PVDF or PE coated or anodized aluminum sheets with and honeycomb foil by bonding and laminating with high polymer adhesive, it is a kind of special sandwich composite material and panel with features of low weight and cost, high tensile and impact strength, good flatness, smooth surface finish and durable colors, customizable thickness and sizes and designs according to project requirements and drawings.
Selectable surface finish and colors of the aluminum honeycomb composite panels include PVDF coating, PE coating, anodizing and natural limestone, stone, marble or granite lamitation, smooth surface or brushed finish or embossed finish for special applications and decorations. Natural colors, solid or metallic coating colors or artificial imitated wood or stone, mable, granite grains and colors.
These panels are lightweight, with a weight range of 2.75-7.5kg/m2, making them easy to install and handle. They also have a high elongation rate of ≥8%, which makes them resistant to bending or breaking under pressure.
Our Aluminum honeycomb Composite Panels come in a wide range of customizable colors, sizes, designs, thicknesses, and order quantities. This means that you can tailor the panels to your specific needs and preferences, making them ideal for a wide range of projects.
In addition to their versatility and customizability, our Aluminum Composite Panels also offer Class B fireproofing protection, which makes them a safe and reliable choice for building construction. They can also be fixed by self-tapping bolts, which makes installation quick and easy.
| Name | Aluminum honeycomb panel | Composition | Aluminum sheets, honeycomb foil, adhesive |
| Techniques | Bonding and laminating | Structure | Sandwiched lamination |
| Panel thickness | 5mm to 200mm or customized thickness | Aluminum skins | 0.5mm to 1.0mm other customized thickness |
| Cell size | 4mm, 6mm, 8mm, 10mm etc. | Aluminum alloy | A1100, A3003 or A5052 |
| Surface treatment | PVDF coating, PE coating, anodizing | Color | Solid colors, metallic colors, natural color, imitated wood, stone, marble and granite colors |
| Surface finish | Smooth, hairlines brushed finish, embossed finish. | Coating thickness | 25mm to 45mm |
| Size | 1220x2440mm or customized sizes as per drawings | Design | Flat, curved, hyperbolic or other irregular shapes |
| Density | 2.75kg/m² to 7.5kg//m² | Optional face materials | Aluminum alloy, HPL, limestone, natural stone, granite, marble or fiberglass sheets |
| Features | Light weight, low cost, high strength, good flatness, uniform color, even coating finish, variety of available colors, good heat and sound insulation, customizable sizes and thickness | Applications | Building façades, eaves, awnings, canopies, ceilings, roofs, partitions, interior and exterior walls, ship, vehicles, cabinets, tables, furniture etc. |
One of the primary applications of the RENOXBELL Aluminium honeycomb panels is building facades. These panels can be attached to concrete walls directly, providing an excellent finish and thermal insulation. The Aluminum honeycomb panel has excellent heat insulation and sound insulation properties, making it an ideal choice for buildings that require energy efficiency and noise reduction.
In addition to building facades, the RENOXBELL Aluminium honeycomb panel is also suitable for interior decoration. The panels can be easily cut and bent, allowing designers to create unique shapes and patterns. The Aluminum honeycomb panel is available in a range of colors, including solid, metallic, imitated stone, marble, granite, and wood colors, making it a versatile option for any interior design project.
The RENOXBELL aluminum honeycomb panel is also ideal for signage and furniture applications. The panels can be cut and shaped to create custom signs and logos, providing a durable and cost-effective solution for businesses. Additionally, the Aluminium honeycomb sheets can be used to create modern and stylish furniture designs that are both lightweight and strong.
The product is packaged in wooden pallets or boxes, and the delivery time is between 20-35 days. The payment terms for the ACP-120 are T/T or L/C, and the supply ability is 300,000㎡ monthly. The product has an elongation of ≥8%, making it a durable option for long-term use.
Brand Name: RENOXBELL
Model Number: ACP-120
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1000㎡
Price: USD10-USD60/㎡
Packaging Details: wooden pallets or boxes
Delivery Time: 20-35 days
Payment Terms: T/T or L/C
Supply Ability: 300,000㎡ monthly
Packing: Carton, Wooden Case, Pallet
Color: Solid, Metallic, Imitated Stone, Marble, Granite And Wood Colors
Fireproof Grade: B1, A2
Weight: 4.5-7.5kg/m2
Peeling Strength: ≥7N/mm
Our aluminum composite panels are widely used for building renovation and decoration. They are very popular for shop exterior wall decoration. Our panels are finished by adhesive in sandwich way, making them sturdy and long-lasting.
