| Brand Name: | RENOXBELL |
| Model Number: | ACP-129 |
| MOQ: | 1000㎡ |
| Price: | USD10-USD60/㎡ |
| Packaging Details: | wooden pallets or boxes |
| Payment Terms: | T/T or L/C |

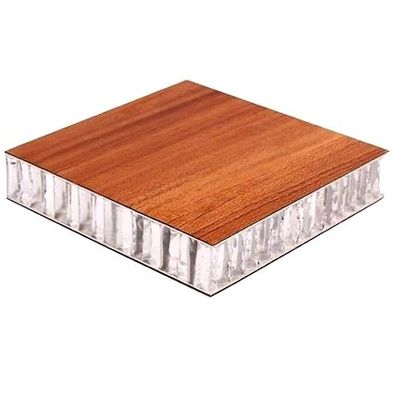

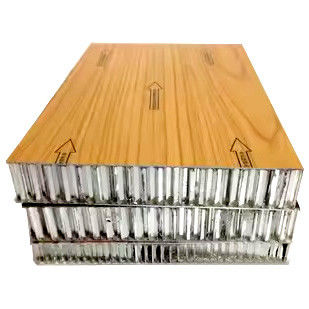

Aluminum Honeycomb Panel is made from good quality PVDF or PE coated or anodized aluminum sheets with and honeycomb foil by bonding and laminating with high polymer adhesive, it is a kind of special sandwich composite material and panel with features of low weight and cost, high tensile and impact strength, good flatness, smooth surface finish and durable colors, customizable thickness and sizes and designs according to project requirements and drawings.
Selectable surface face material is not only aluminum sheets but also other metal sheets like copper or brass sheets, stainless steel sheets, titanium-zinc sheets etc. or HPL or fiberglass sheets, we can customize the honeycomb panels according to the projects specifications and drawings.
The Aluminum honeycomb Composite Panels are available in a variety of colors, including solid, metallic, imitated stone, marble, granite, and wood colors. This wide range of colors makes it easy to find the perfect match for any design or aesthetic. The product is available in both common type and fire-retardant type, giving customers the flexibility to choose the right option for their needs.
In addition to its aesthetic benefits, the Aluminum honeycomb Composite Panels also come with a 15-year warranty. This warranty ensures that the product will maintain its quality and durability over time, giving customers peace of mind and confidence in their investment. The panels are also available in a range of packing options, including carton, wooden case, and pallet.
| Name | Aluminum honeycomb panel | Composition | Aluminum sheets, honeycomb foil, adhesive |
| Techniques | Bonding and laminating | Structure | Sandwiched lamination |
| Panel thickness | 5mm to 200mm or customized thickness | Aluminum skins | 0.5mm to 1.0mm other customized thickness |
| Cell size | 4mm, 6mm, 8mm, 10mm etc. | Aluminum alloy | A1100, A3003 or A5052 |
| Surface treatment | PVDF coating, PE coating, anodizing | Color | Solid colors, metallic colors, natural color, imitated wood, stone, marble and granite colors |
| Surface finish | Smooth, hairlines brushed finish, embossed finish. | Coating thickness | 25mm to 45mm |
| Size | 1220x2440mm or customized sizes as per drawings | Design | Flat, curved, hyperbolic or other irregular shapes |
| Density | 2.75kg/m² to 7.5kg//m² | Optional face materials | Aluminum alloy, HPL, limestone, natural stone, granite, marble or fiberglass sheets |
| Features | Light weight, low cost, high strength, good flatness, uniform color, even coating finish, variety of available colors, good heat and sound insulation, customizable sizes and thickness | Applications | Building façades, eaves, awnings, canopies, ceilings, roofs, partitions, interior and exterior walls, ship, vehicles, cabinets, tables, furniture etc. |
These Aluminum Composite Panels are easy for installation and widely used for building renovation and decoration. They are made from 0.15-0.5mm aluminum plates and LDPE core.
RENOXBELL Aluminum Composite Panel is a high-quality aluminum composite panel that is manufactured in China. It has received ISO9001 certification, ensuring that it meets international quality standards. The minimum order quantity for this product is 1000㎡, and the price ranges from USD10-USD60/㎡. It is packaged in wooden pallets or boxes and has a delivery time of 20-35 days. Payment terms include T/T or L/C, and the supply ability is 300,000㎡ monthly.
One of the outstanding features of RENOXBELL Aluminum Composite Panels is its high impact resistance, making it ideal for building facades, interior decoration, signage, furniture, and other applications where durability is essential. It has excellent corrosion resistance and a peeling strength of ≥7N/mm, making it a reliable product for long-term use.
RENOXBELL Aluminum Composite Panel is available in a wide range of colors, including solid, metallic, imitated stone, marble, granite, and wood colors. Customized sizes are also available, ensuring that customers can get the exact specifications they need for their projects.
Another benefit of RENOXBELL ACP-120 is its good flatness, which means it can be attached to a concrete wall directly, saving time and money on installation.
If you are looking for a high-quality aluminum composite panel for your next project, RENOXBELL Aluminum Composite Panel is an excellent choice. Its durability, versatility, and customization options make it the perfect solution for a wide range of applications and scenarios.
Brand Name: RENOXBELL
Model Number: ACP-120
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1000㎡
Price: USD10-USD60/㎡
Packaging Details: wooden pallets or boxes
Delivery Time: 20-35 days
Payment Terms: T/T or L/C
Supply Ability: 300,000㎡ monthly
Warranty: 15 Years
Weight: 4.5-7.5kg/m2
Heat Insulation: Excellent
Sound Insulation: Excellent
Impact Resistance: High
Additional Features:
