| Brand Name: | RENOXBELL |
| Model Number: | CLAD-001 |
| MOQ: | 500 square meters |
| Price: | USD50 to USD200 per square meter |
| Packaging Details: | plywood crates |
| Payment Terms: | T/T, L/C, Western Union |
Natural Marble and Aluminum Honeycomb Composite Panel for Wall Cladding and Decoration
Key Words
Aluminum Wall cladding panel, honeycomb panel, sandwich panel, marble, stone, granite, composite material, wall cladding, metal wall panel, Aluminum wall panel, aluminium wall panel, exterior wall panels, Aluminum sheet, curtain wall panel, Wall panel, metal wall cladding, aluminum curtain wall panel, aluminum curtain wall cladding panel, Metal panel, aluminum wall cladding, Aluminum composite panel, wall cladding panel, Perforated aluminum sheet, Wall aluminum cladding, Aluminum Plate, Perforated aluminum panel, Aluminum Panel, Aluminum composite sheet, Aluminum ceiling panel, Aluminum ceiling, aluminum cladding, Aluminum cladding panel, aluminum facade panel, Ceiling panel, Ceiling tile, Aluminum honeycomb composite panel, Aluminum honeycomb panel, Metal cladding panel, Corrugated Aluminum Sheet, aluminum coil, aluminum plate, building material, decoration material, construction material, ACP, Aluminum composite material, ACM, aluminium composite panel

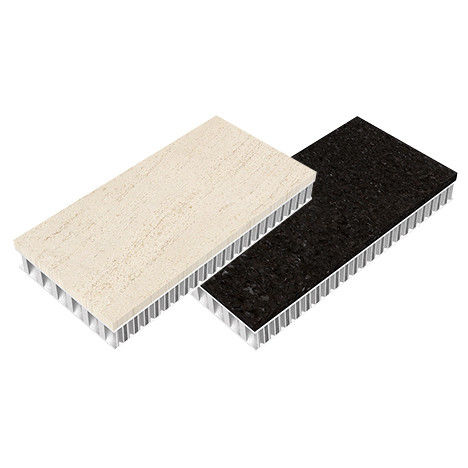

Descriptions of Marble-Aluminum Honeycomb Composite Cladding
The marble/stone/granite aluminum honeycomb panel is made from thin natural marble, granite or stone sheets, aluminum sheets and aluminum foil honeycomb by bonding with polymer adhesive in sandwich laminating way. It is a very good alternative material of natural stone, marble or granite with much lower weight and cost in the same thickness.
This kind of aluminum composite panels is very popular for luxury building decoration at more competitive budget.
Specifications
Surface finish: 3mm to 10mm thick natural stone, marble or granite
Aluminum alloy: A1100 or A3003
Aluminum sheets: 0.5mm to 1.0mm thickness
Core: 5mm to 200mm aluminum foil honeycomb
Total panel thickness: 8mm-210mm
Maximum size: 1.5mx3m
Items | Exterior Panels | Interior Panels |
|---|---|---|
| Width | Up to 1600mm, subject to width limitation of specific stone, marble or granite | |
| Length | Up to 3000mm, subject to length limitation of specific stone, marble or granite | |
| Thickness | Customizable | |
| Surface Finishes | Polished, Honed, Flamed, Bush Hammered, etc | |
| Flatwise Tensile Strength | 1.6Mpa | 0.8Mpa |
| Flatwise Compressive Strength | 1.0Mpa | 0.8Mpa |
| Flatwise Shear Strength | 1.0Mpa | 0.8Mpa |
| Flatwise Compressive Elastic Modulus | 35Mpa | 30Mpa |
| Flexural Strength | 8Mpa | 4Mpa |
| Drum Peeling Strength | 60N.mm/mm | 50N.mm/mm |
| Weather Resistance | -40 degree Celsius to 80 degree Celsius | |
Installation
The marble aluminum honeycomb cladding panels are generally assebled with aluminum profile hangers or brackets which are used for fixing the panels to the subframes of building. It's very easy to install the panels with a little workforce.
At RENOXBELL, we use the honeycomb panel with a hexagonal core to create ultra-light, strong and large sheets of marble or natural stone.
This solution consists in manufacturing a composite panel made by the following layers:
1, A thin layer of marble, granite or other stone
2, A sheet of an ultra-light and resistant reinforcing material such as aluminium or fiberglass or HPL.
3, A layer of hexagonal honeycomb aluminum foil.
4, Another sheet of ultra-light and resistant reinforcing material, equal to point 2.
The set forms a composite with a natural stone skin that offers extraordinary mechanical and physical properties for marble or stone coatings.
Why do we apply honeycomb to marble and natural stone?
In the case of interior design or general marble and stone cladding, honeycomb provides the strongest support with the lowest possible weight. Three factors previously irreconcilable in marble and stone cladding are related in the most optimized way possible:
Low weight + High Resistance = Large Format
Honeycomb applied to marble, and natural stone thus guarantees great functionality. It gives wings to the creativity of interior designers, furniture designers, facadists, naval interior designers, and architects.
Video
Video
Video
Video
Video
|
